22 Winchester Magnum Rimfire Ammo
GunCritic Score
50%
Critic Rating
0 Reviews
50%
User Rating
0 Reviews
MSRP:$6.79
Used Price:
$6.11
Sale Price:
$6.79
Ammo Stats
Average Fps
1875 fps
Average Energy
322 ft-lbf
Recoil
1.62 N
Ballistic Coefficient
0.1
Sectional Density
0.11 lb/in²
Average Gr
40 gr
Range
200 yd
Muzzle Velocity
1910 fps
Muzzle Energy
440 J
Bullet Drop
0.04 in
From$6.79
See DealThe .22 Winchester Magnum Rimfire, more commonly called .22 WMR, .22 Magnum, or simply .22 Mag, is a rimfire cartridge. Originally loaded with a bullet weight of 40 grains (2.6 g) delivering velocities in the 2,000 feet per second (610 m/s) range from a rifle barrel, .22 WMR has also been loaded with bullet weights of 50 grains (3.2 g) at 1,530 feet per second (470 m/s) and 30 grains (1.9 g) at 2,200 feet per second (670 m/s). The .22 WMR
...
was introduced in 1959 by Winchester, but was not used by Winchester until the Winchester Model 61 slide rifle could be chambered for it, in 1960. By that time, Smith and Wesson and Ruger had revolvers for it, and Savage had come out with the Model 24 and since late 2012, the model 42, a more modern update than the 24, a .22/.410 rifle. It was the only successful rimfire cartridge introduced in the 20th Century.
Since the .22 WMR generally uses the same weight bullets as the .22 Long Rifle, it is used in similar situations. The 40-grain (2.6 g) .22 WMR at 100 yards (91 m) still retains the same velocity as a .22 LR at the muzzle, which can provide improved penetration at all ranges and more reliable expansion at longer ranges with expanding bullets.
If sighted in for maximum point blank range on a 3-inch (76 mm) high target, the 40-grain (2.6 g) .22 WMR can reach ranges of nearly 125 yards (114 m). This makes the .22 WMR an effective short to medium range varmint rifle cartridge. The relatively quiet report and negligible recoil also make it a very pleasant round to shoot for extended periods. The .22 WMR can take down small game such as rabbits, groundhogs, prairie dogs, foxes, racoons, and even coyotes at close range..22 Winchester Magnum Rimfire For Sale
.22 Winchester Magnum Rimfire Ballistics Performance
| Distance (yard) | Elevation (in) | Energy (fps) | Velocity (ft/lb) |
| 0 | 0.00 | 245.52 | 2550.00 |
| 30 | -0.85 | 245.52 | 2550.00 |
| 60 | -3.42 | 245.52 | 2550.00 |
| 90 | -7.69 | 245.52 | 2550.00 |
| 130 | -13.67 | 245.52 | 2550.00 |
| 160 | -21.35 | 245.52 | 2550.00 |
| 190 | -30.75 | 245.52 | 2550.00 |
| 230 | -41.85 | 245.52 | 2550.00 |
| 260 | -54.66 | 245.52 | 2550.00 |
| 290 | -69.18 | 245.52 | 2550.00 |
| Distance (yards) | 0 | 30 | 60 | 90 | 130 | 160 | 190 | 230 | 260 | 290 |
| Elevation (in) | 0.00 | -0.85 | -3.42 | -7.69 | -13.67 | -21.35 | -30.75 | -41.85 | -54.66 | -69.18 |
| Energy (fps) | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 |
| Velocity (ft/lb) | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 |
.22 Winchester Magnum Rimfire History

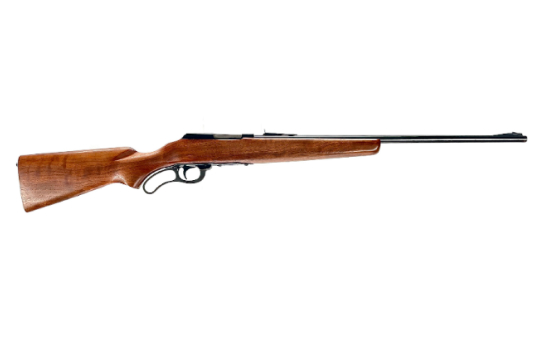

Introduced in 1959, the 22 Winchester Magnum Rimfire (22 WMR or 22 Mag) was the only successful rimfire introduced in the 20th Century. Although developed by Winchester, the Marlin Levermatic rifle was the first firearm offered in the chambering.
.22 Winchester Magnum Rimfire Usage

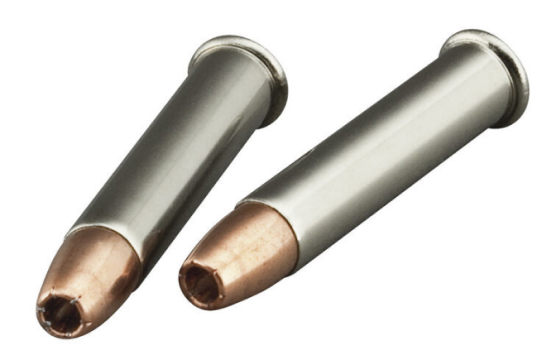

The 22 WMR is a solid choice for varmint control. With an effective range of 150-200 yards, low recoil, and lightweight firearm options, it is a great choice for youth and beginners getting started. Viable game to be targeted would be squirrel, groundhogs/marmots, fox, bobcat, rabbit, prairie dogs, and even coyotes within its effective range.
.22 Winchester Magnum Rimfire Design

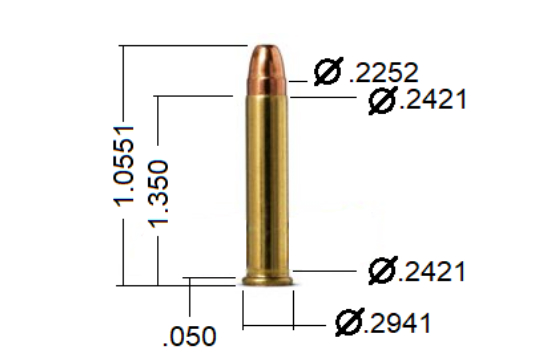

The 22 WMR is a rimfire, rimmed, straight wall cartridge firing a .2285 diameter heeled bullet with an overall length of 1.350”. Muzzle velocity is approximately 1900 feet per second depending on ammunition choice. The 22 WMR is designed to be used with a 1:16” rifling twist rate.
.22 Winchester Magnum Rimfire Trivia

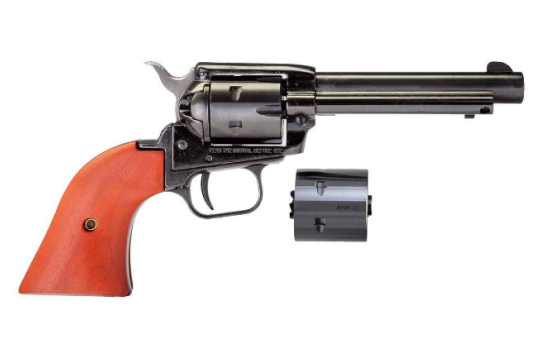

The 22 WMR loaded with the same 40 grain bullet common in 22LR and generates 50% more kinetic energy at 100 yards than the 22LR generates at the muzzle. Some revolvers are offered with interchangeable cylinders allowing the use of 22LR or 22 WMR from the same firearm.
.22 Winchester Magnum Rimfire Types

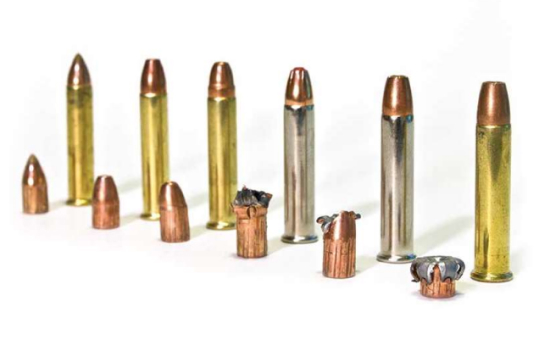

Ammunition can be found with a jacketed round nose, soft point, polymer tip, or jacketed hollow point bullets for different uses. Several styles of firearms can be found chambered in 22 WMR; revolvers, pistols, bolt action, lever action, pump action, and semi automatic rifles or carbines using box or tubular magazines.
GunCritic Score
Ammo Stats
Average Fps
1875 fps
Average Energy
322 ft-lbf
Recoil
1.62 N
Ballistic Coefficient
0.1
Sectional Density
0.11 lb/in²
Average Gr
40 gr
Range
200 yd
Muzzle Velocity
1910 fps
Muzzle Energy
440 J
Bullet Drop
0.04 in
Wind Drift
0.03 in
Want to Sell Your Gun?
.22 Winchester Magnum Rimfire Specifications
Category
Caliber
.22 Winchester Magnum Rimfire
Gun Types
Rifle, Handgun
Case Types
Rimmed, Straight-walled
Height
1.06
Average Grain
38
Case Material
Brass
Rim Type
Rimmed
Bullet Types
Jacketed Hollow Point,Full Metal Jacket,Soft Point
Primer Type
Small Rifle
Bullet Diameter
0.300 in
Land Diameter
0.292 in
Neck Diameter
0.323 in
Base Diameter
0.376 in
Rim Diameter
0.414 in
Rim Thickness
0.053 in
Case Length
34 in
Oal Cartridge Length
40 in
Bullet Weight
40 gr
