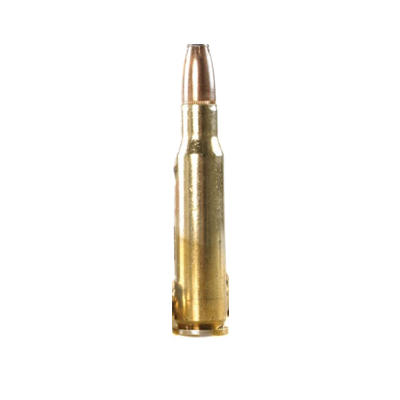

307 Winchester Ammo
GunCritic Score
50%
Critic Rating
0 Reviews
50%
User Rating
0 Reviews
MSRP:$37.99
Used Price:
$34.19
Sale Price:
$37.99
Ammo Stats
Average Fps
2510 fps
Average Energy
2519 ft-lbf
Recoil
1.93 N
Ballistic Coefficient
0.27
Sectional Density
0.27 lb/in²
Average Gr
180 gr
Pwdr Chrg Wght
41 gr
Pwdr Chrg Vel
2598 fps
Range
200 yd
Muzzle Velocity
2760 fps
From$37.99
See DealThe 307 Winchester cartridge was introduced in 1982 for a lever-action rifle equipped with a tubular magazine. It was designed by its makers, Winchester, to shoot flatter with superior shot placements when coupled with the slick and handy model 94 lever action rifle. The 307 Win’s design was based on the .308 Winchester, with a semi rim added to aid extraction, and more thickness to the case walls than its parent case. Its main purpose was to become the most popular short-action,
...
big-game hunting cartridge worldwide, taking over from its predecessor and parent, the .308 Win.
Case
With a rimmed bottle-neck, the case has an overall length of 2.56 inches, and a base diameter of 0.506. Because of its thicker walls, although the design is akin to the .308 Win, the .307 offers slightly less case capacity than its parent case.
Bullet
The bullet diameter for the 307 Win is 0.308 inches, meaning it is a .30 caliber round. 180 grains can be fired at a muzzle velocity of 2510 fps to generate 2519 ft lb of muzzle energy.
130 and 150 grain loads can also be used, with a 150-grain factory load churning up to 2760fps. It is also quite rare, but a 170-grain load can be used as well, such as the 170 grain Speer flat point. It is suitable for light-bodied games, but at full .307 velocities, it is too soft for use on larger-bodied medium games, making them unable to cope with taking shots and unable to produce exit wounds. Winchester recommends that only flat-nosed bullets be used in the .307. Round-nose bullets may be dangerous due to the extra recoil inertia which could result in cartridge detonation within tubular magazines of the 94. Because of such safety concerns, flat-nosed bullets are always used.
Rifle chambering the 307 Win
The Winchester Big Bore Model 94 Angle Eject rifle, modified to eject fired cases to the side instead of straight up to give allowance for a scope, was the only rifle produced to fire the cartridge, though the competitor, Marlin Firearms, created some prototype model 336 rifles chambered in .307 Win. It is still commercially loaded today, but many handload it to gain better performance and accuracy.
An adequate 200-yard deer rifle is also capable of unleashing the potential of the 307 Winchester. Unfortunately, neither that (nor its other top features) wasn’t enough to capture the hearts and imaginations of hunters, and today, the .307 Winchester is nearly obsolete.
.307 Winchester For Sale
.307 Winchester Ballistics Performance
| Distance (yard) | Elevation (in) | Energy (fps) | Velocity (ft/lb) |
| 0 | 0.00 | 2611.94 | 2800.00 |
| 30 | -0.78 | 2611.94 | 2800.00 |
| 60 | -3.11 | 2611.94 | 2800.00 |
| 90 | -7.00 | 2611.94 | 2800.00 |
| 130 | -12.45 | 2611.94 | 2800.00 |
| 160 | -19.45 | 2611.94 | 2800.00 |
| 190 | -28.00 | 2611.94 | 2800.00 |
| 230 | -38.12 | 2611.94 | 2800.00 |
| 260 | -49.78 | 2611.94 | 2800.00 |
| 290 | -63.01 | 2611.94 | 2800.00 |
| Distance (yards) | 0 | 30 | 60 | 90 | 130 | 160 | 190 | 230 | 260 | 290 |
| Elevation (in) | 0.00 | -0.78 | -3.11 | -7.00 | -12.45 | -19.45 | -28.00 | -38.12 | -49.78 | -63.01 |
| Energy (fps) | 2611.94 | 2611.94 | 2611.94 | 2611.94 | 2611.94 | 2611.94 | 2611.94 | 2611.94 | 2611.94 | 2611.94 |
| Velocity (ft/lb) | 2800.00 | 2800.00 | 2800.00 | 2800.00 | 2800.00 | 2800.00 | 2800.00 | 2800.00 | 2800.00 | 2800.00 |
GunCritic Score
Ammo Stats
Average Fps
2510 fps
Average Energy
2519 ft-lbf
Recoil
1.93 N
Ballistic Coefficient
0.27
Sectional Density
0.27 lb/in²
Average Gr
180 gr
Pwdr Chrg Wght
41 gr
Pwdr Chrg Vel
2598 fps
Range
200 yd
Muzzle Velocity
2760 fps
Muzzle Energy
3440 J
Bullet Drop
0.02 in
Wind Drift
0.01 in
Want to Sell Your Gun?
.307 Winchester Specifications
Category
Caliber
.307 Winchester
Gun Types
Rifle
Case Types
Rimmed, Bottleneck
Height
2.02
Average Grain
180
Case Material
Brass
Rim Type
Rimmed
Bullet Types
Soft Point,Jacketed Hollow Point,Full Metal Jacket
Primer Type
Large Rifle
Bullet Diameter
0.295 in
Land Diameter
0.289 in
Neck Diameter
0.322 in
Base Diameter
0.379 in
Rim Diameter
0.400 in
Rim Thickness
0.045 in
Case Length
51 in
Oal Cartridge Length
67 in
Bullet Weight
150 gr
