327 Federal Magnum Ammo
GunCritic Score
80%
Critic Rating
2 Reviews
50%
User Rating
0 Reviews
MSRP:$24.99
Used Price:
$22.49
Sale Price:
$24.99
Ammo Stats
Average Fps
1500 fps
Average Energy
500 ft-lbf
Ballistic Coefficient
0.14
Sectional Density
0.15 lb/in²
Average Gr
100 gr
Pwdr Chrg Wght
7.4 gr
Pwdr Chrg Vel
1500 fps
Range
100 yd
Muzzle Velocity
1400 fps
Muzzle Energy
590 J
From$24.99
See DealAbout The .327 Federal Magnum Ammo is a cartridge that was designed in 2007 with the intention to create the power of a .357 Magnum Ammo in a six-shot, small revolvers, whose cylinders otherwise would only hold five shots. The .327 Federal Magnum Ammo has even been used in revolvers with a maximum capacity of seven shots or more. The .327 Federal Magnum Ammo was an attempt to improve the .32 H&H Magnum Ammo and therefore was based on its casing. The
...
.327 Federal Magnum Ammo was given a 1/8-inch longer cartridge, with the strengthened web at the base, thicker walls of the casing, and different metallurgy and heat-treatment, all of which allowed it to be loaded to higher pressure levels than its predecessors. The overall length of the .327 Federal Magnum Ammo is 37mm, and the bullet diameter measures 7.9mm. The 100-grain bullet variant of the .327 Federal Magnum Ammo can travel at a velocity of 1,655 feet per second while creating an energy level of 640 ft.lbf.
Manufacturer
The .327 Federal Magnum Ammo was designed in 2007 by Federal Premium Ammunition and was sold by Sturm, Ruger & Co.
Uses
With the lighter variants of the .327 Federal Magnum Ammo, hunters can seamlessly and accurately hunt down small game while enjoying a low recoil. The heavier variants of this cartridge can take down the deer family and protect you from specific predators. .327 Federal Magnum For Sale
.327 Federal Magnum Ballistics Performance
| Distance (yard) | Elevation (in) | Energy (fps) | Velocity (ft/lb) |
| 0 | 0.00 | 245.52 | 2550.00 |
| 30 | -0.85 | 245.52 | 2550.00 |
| 60 | -3.42 | 245.52 | 2550.00 |
| 90 | -7.69 | 245.52 | 2550.00 |
| 130 | -13.67 | 245.52 | 2550.00 |
| 160 | -21.35 | 245.52 | 2550.00 |
| 190 | -30.75 | 245.52 | 2550.00 |
| 230 | -41.85 | 245.52 | 2550.00 |
| 260 | -54.66 | 245.52 | 2550.00 |
| 290 | -69.18 | 245.52 | 2550.00 |
| Distance (yards) | 0 | 30 | 60 | 90 | 130 | 160 | 190 | 230 | 260 | 290 |
| Elevation (in) | 0.00 | -0.85 | -3.42 | -7.69 | -13.67 | -21.35 | -30.75 | -41.85 | -54.66 | -69.18 |
| Energy (fps) | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 |
| Velocity (ft/lb) | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 |

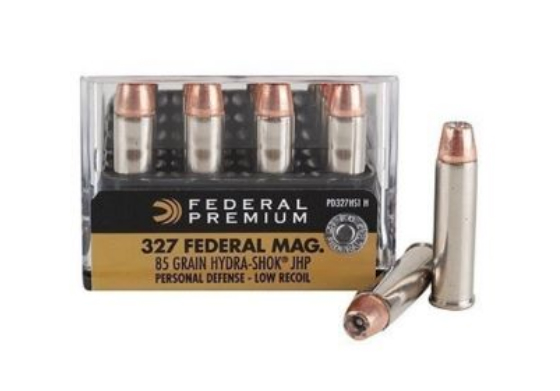

.327 Federal Magnum History
Designed by Federal and Ruger in 2007 to provide the power of a .357 Magnum in a compact revolver holding 6 rounds instead of 5. They lengthened the case of the .32 H&R Magnum by ⅛”, strengthened the web and case to allow double the pressure of the .32 H&R Magnum.

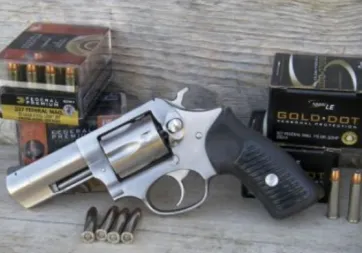

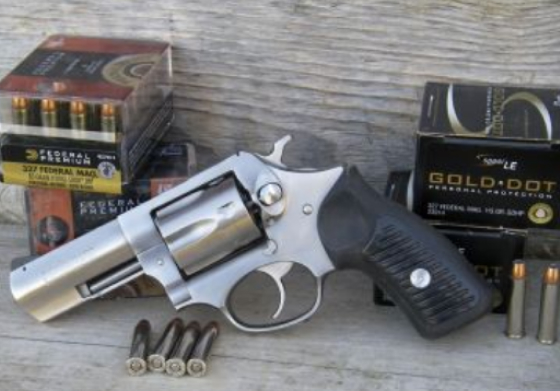

.327 Federal Magnum Usage
The .327 Federal Magnum is designed for concealed carry and personal defense. With similar ballistics to the .357 Magnum, it can also be used for homestead defense and makes a suitable choice for wilderness carry if large predators are not present. Henry offers a lever action rifle, making the .327 Federal Magnum a dual use cartridge with option to pair a revolver and a long arm in the same cartridge.

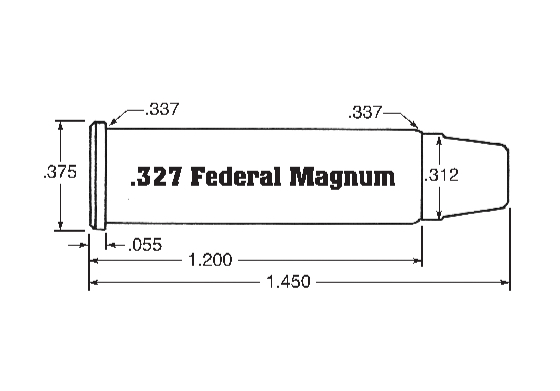

.327 Federal Magnum Design
The .327 Federal Magnum is a rimmed, straight walled cartridge with an overall length of 1.47” and a case capacity of 19 grains (H2O). It fires a .312” diameter bullet and uses small magnum pistol primers or small rifle primers with a max pressure of 45,000 PSI. *Issue: Some manufacturers are suggesting small rifle primers and some suggest small magnum pistol primers. The Ammo Encyclopedia lists small rifle primers*

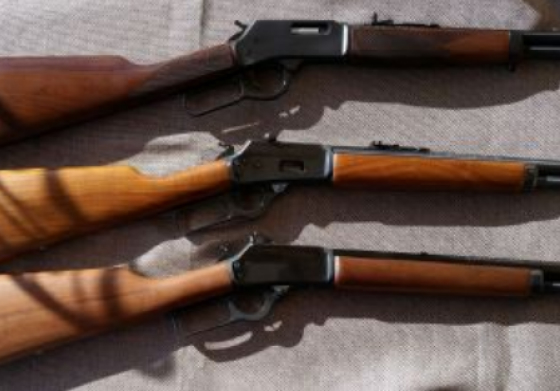

.327 Federal Magnum Trivia
The .327 Federal Magnum offers similar ballistics to the old .32-20 Winchester rifle cartridge but achieves these results from short barreled revolvers.

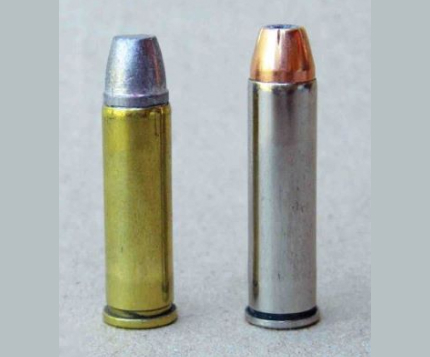

.327 Federal Magnum Types
Ammunition options offer cast lead, full metal jacket, hollow points or soft points in weights ranging from 86-115 grains. Standard rifling twist rate is 1:16”.
GunCritic Score
Ammo Stats
Average Fps
1500 fps
Average Energy
500 ft-lbf
Ballistic Coefficient
0.14
Sectional Density
0.15 lb/in²
Average Gr
100 gr
Pwdr Chrg Wght
7.4 gr
Pwdr Chrg Vel
1500 fps
Range
100 yd
Muzzle Velocity
1400 fps
Muzzle Energy
590 J
Bullet Drop
0.05 in
Wind Drift
0.03 in
Want to Sell Your Gun?
.327 Federal Magnum Specifications
Category
Caliber
.327 Federal Magnum
Gun Types
Revolver
Case Types
Rimmed, Straight-walled Cartridge
Height
1.20
Average Grain
100
Recoil
0.67
Case Material
Brass
Rim Type
Rimmed
Bullet Types
Jacketed Hollow Point,Full Metal Jacket,Lead Round Nose
Primer Type
Small Pistol
Bullet Diameter
0.330 in
Land Diameter
0.319 in
Neck Diameter
0.360 in
Base Diameter
0.423 in
Rim Diameter
0.473 in
Rim Thickness
0.052 in
Case Length
31 in
Oal Cartridge Length
39 in
Bullet Weight
