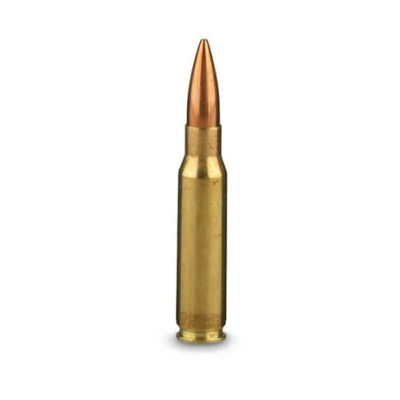

7.62x51mm Ammo
GunCritic Score
50%
Critic Rating
0 Reviews
50%
User Rating
0 Reviews
MSRP:$7.99
Used Price:
$7.19
Sale Price:
$7.99
Ammo Stats
Recoil
11.8 N
Average Fps
2800 fps
Average Gr
147 gr
Range
1000 yd
Muzzle Velocity
2800 fps
Muzzle Energy
3470 J
Bullet Drop
0.01 in
Wind Drift
0.01 in
From$7.99
See DealThe 7.62×51mm NATO (official NATO nomenclature 7.62 NATO) is a rimless, bottlenecked rifle cartridge. It is a standard for small arms among NATO countries. First developed in the 1950s, the cartridge had first been introduced in U.S. service for the M14 rifle and M60 machine gun. Many other firearms that use the 7.62×51mm NATO remain in service today, especially various designated marksman rifles/sniper rifles and medium machine guns/general-purpose machine guns (i.e. M24 Sniper Rifle and M240 Medium Machine Gun). The cartridge is
...
used by military personnel, on mounted and crew-served weapons that are mounted to vehicles, aircraft, and ships.
The 7.62×51mm NATO has 3.38 ml (52.0 grains) cartridge case capacity. The exterior shape of the case was designed to promote reliable case feeding and extraction in bolt-action rifles and machine guns alike, under extreme conditions. Americans would define the shoulder angle at alpha/2 = 20 degrees. The common rifling twist rate for this cartridge is 305 mm (1 in 12 in), 4 grooves, Ø lands = 7.62 mm, Ø grooves = 7.82 mm, land width = 4.47 mm. The primer type can be Berdan or Boxer Large Rifle. U.S. Army Research Laboratory (ARL) research papers on the influence of Berdan and Boxer primer spit-hole diameter on 7.62-mm cartridge performance concluded the primary advantage of a Berdan primer is that they are less expensive than a Boxer primer due to their reduced complexity. The ARL found there is little variation in the pressure-time curves between the different spit-hole configurations. Doubling the area of the spit-hole or incorporating a Berdan style spit-hole with the same total area as a standard M80 round showed minimal effects on the overall performance. The standard Boxer primed M80 showed the best results. All measured differences are within one standard deviation, and are not significant.7.62 x 51mm For Sale
7.62 x 51mm Ballistics Performance
| Distance (yard) | Elevation (in) | Energy (fps) | Velocity (ft/lb) |
| 0 | 0.00 | 245.52 | 2550.00 |
| 30 | -0.85 | 245.52 | 2550.00 |
| 60 | -3.42 | 245.52 | 2550.00 |
| 90 | -7.69 | 245.52 | 2550.00 |
| 130 | -13.67 | 245.52 | 2550.00 |
| 160 | -21.35 | 245.52 | 2550.00 |
| 190 | -30.75 | 245.52 | 2550.00 |
| 230 | -41.85 | 245.52 | 2550.00 |
| 260 | -54.66 | 245.52 | 2550.00 |
| 290 | -69.18 | 245.52 | 2550.00 |
| Distance (yards) | 0 | 30 | 60 | 90 | 130 | 160 | 190 | 230 | 260 | 290 |
| Elevation (in) | 0.00 | -0.85 | -3.42 | -7.69 | -13.67 | -21.35 | -30.75 | -41.85 | -54.66 | -69.18 |
| Energy (fps) | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 | 245.52 |
| Velocity (ft/lb) | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 | 2550.00 |
GunCritic Score
Ammo Stats
Recoil
11.8 N
Average Fps
2800 fps
Average Gr
147 gr
Range
1000 yd
Muzzle Velocity
2800 fps
Muzzle Energy
3470 J
Bullet Drop
0.01 in
Wind Drift
0.01 in
Want to Sell Your Gun?
7.62 x 51mm Specifications
Category
Caliber
7.62x51mm
Gun Types
Case Types
Height
2.250
Case Material
Brass
Rim Type
Rimless
Bullet Types
Full Metal Jacket,Soft Point,Jacketed Hollow Point
Primer Type
Large Rifle
Bullet Diameter
0.334 in
Land Diameter
0.331 in
Neck Diameter
0.360 in
Base Diameter
0.437 in
Rim Diameter
0.462 in
Rim Thickness
0.054 in
Case Length
51 in
Oal Cartridge Length
67 in
Bullet Weight
147 gr
